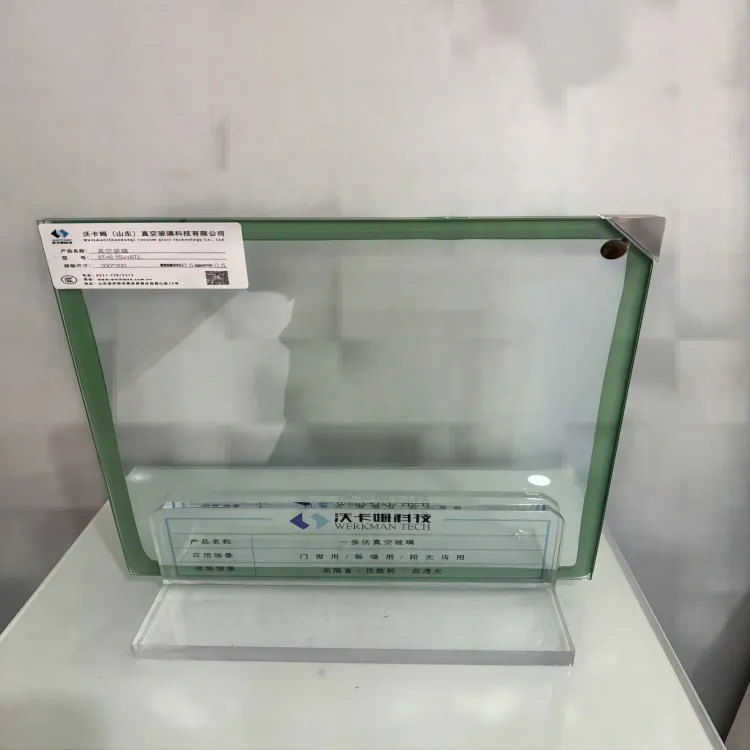

Lub tshuab nqus tsev loj loj ib khob, yog ib qho loj dua ntawm ib lub tshuab nqus tsev iav uas iav muaj ob lub iav iav nrog qhov chaw khiav tawm (0.15mm-0.3mm) txhawb nqa los ntawm micro pillars ntawm ob daim iav.

Raws li peb paub, lub tshuab nqus tsev iav xav tau micro pillars, lub tshuab nqus tsev thiab hermetic foob kev them nyiaj yug, hom iav nrog cov cuab yeej tshwj xeeb thiab nyuaj.Cov iav loj dua, qhov kev xav tau siab dua.Qhov loj tshaj plaws uas peb tuaj yeem tsim yog 3300X2000mm, nws zoo meej rau daim ntaub ntawv uas yuav tsum muaj cov iav loj loj, xws li rau chav kuaj, khw muag khoom thiab cov tsev lag luam.

Muaj ntau yam txiaj ntsig rau kev siv lub tshuab nqus tsev loj ib khob hauv cov tsev txawm tias nyob hauv koj lub tsev lossis chaw ua haujlwm.

Txhim kho zog efficiency

Cov iav zoo li no pab txo qis kev hloov pauv cua sov, uas tuaj yeem txuag tau cov nqi cua sov thiab cua txias.

U-tus nqi tuaj yeem ua tau raws li 0.4-0.6W/㎡.k, txog li 60% kev txuag hluav taws xob

Suab rwb thaiv tsev

Cov iav zoo li no pab txo cov suab nrov sab nraud, nrog rau kev txo suab siab tshaj 39 decibels thiab tsim kom muaj qhov chaw nyob ntsiag to thiab xis nyob hauv tsev.

Ntev ntev durability

Cov iav no muaj lub neej ntev dua li cov iav ib txwm siv, txhais tau hais tias nws yuav kav ntev dua thiab yuav tsum muaj kev saib xyuas tsawg dua lub sijhawm.Qhov kev pab cuam lub neej ntawm lub iav tshaj 25 xyoo.

Muaj kev nyab xeeb

Cov iav zoo li no tuaj yeem ua rau tag nrho tempered nrog lub zog siab dua thiab cuam tshuam tsis kam.

Lub teeb nyhav

Ib lub tshuab nqus tsev iav tsuas yog 10.15mm Thk. Luj: 25kg / m².Nws txo cov kev siv cov ntaub ntawv thaum ncua kev pab cuam lub neej ntawm kho vajtse.

Thaum xaiv cov iav loj, muaj ob peb yam los xav txog. Nov yog qee cov yuam sij kom nco ntsoov.

Loj

Xyuas kom meej qhov chaw ntsuas qhov xav tau lub iav vaj huam sib luag kom paub tseeb tias koj xaiv qhov loj me.

Zog efficiency

Nrhiav cov iav uas muaj qhov muaj txiaj ntsig zoo los pab ua kom koj lub tsev lossis chaw ua haujlwm tau yooj yim dua thiab siv zog.

Kev kho kom haum

Xav txog ib qho kev hloov kho koj xav tau, xws li tinting lossis frosting, kom ntseeg tau tias koj tau txais cov iav zoo rau koj cov kev xav tau tshwj xeeb.Qhov loj tshaj plaws yog 3600X2000mm, ces qhov ntau thiab tsawg tuaj yeem kho./341

Hauv kev xaus, yog tias koj xav tau lub iav loj rau koj lub tsev, chaw ua haujlwm lossis lub tsev, lub tshuab nqus tsev loj loj ib lub iav yuav yog qhov kev xaiv zoo tshaj. Nrog nws lub zog ua haujlwm zoo, lub suab rwb thaiv tsev, thiab ntxiv cov txiaj ntsig kev nyab xeeb, nws yog kev nqis peev ntse rau txhua tus tswv tsev.

Khoom Specification

QQ202401151608411 Qhov siab tshaj plaws: 3660 * 2000mm

a.5mmT+0.15V+5mmTL Ug=0.55W/㎡.k

b.6mmT+0.15V+6mmTL Ug=0.5W/㎡.k

c.5mm+16A TGI+5mmT+0.15V+5mmTL Ug=0.45W/㎡.k

Khoom Properties

1.Thermal rwb thaiv tsev

tus nqi 04-0.6W/㎡.k

2. Suab rwb thaiv tsev

Rw Ntau dua lossis sib npaug rau 39dB

3.Ntau Thinner ntau sib dua

Ib lub tshuab nqus tsev iav tsuas yog 10.15mm Thk. Qhov hnyav: 25kg / m²; Nws txo cov kev siv cov ntaub ntawv thaum ncua kev pab cuam lub neej ntawm kho vajtse. Tus nqi ntawm kev khaws cia thiab kev thauj mus los kuj tseem txo qis.

4.Super Lub neej ntev

Qhov kev pab cuam lub neej expectancy ntawm Vacuum iav tshaj 25 xyoo.

5.Tempered thiab nyab xeeb

Vaccum iav yog Full-Tempered, siab zog, cuam tshuam tsis kam
