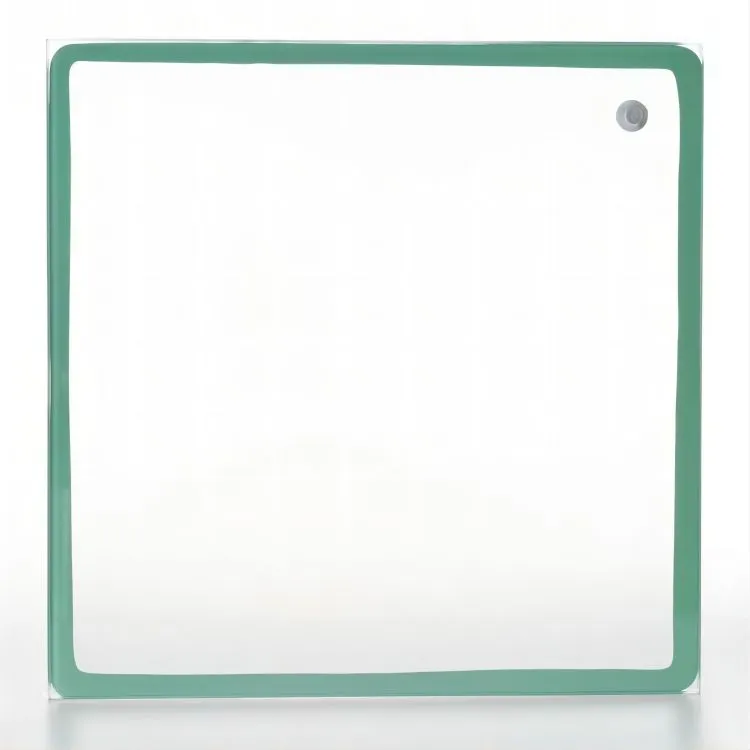

Lub tshuab nqus tsev vacuum rau lub tsev passive, yog ib qho kev tsim kho vaj tsev cov khoom siv uas tau nrov rau cov neeg tsim qauv hauv tsev vim nws qhov tshwj xeeb ntawm kev siv hluav taws xob zoo.

Lub tshuab nqus tsev vacuum rau lub tswv yim passive lub tsev los ntawm kev teeb tsa nrog tib lub hauv paus ntsiab lus xws li Dewar flask. Cov iav muaj ob lub iav iav nrog qhov chaw khiav tawm (0.15mm-0.3mm) txhawb nqa los ntawm micro pillars ntawm ob daim iav. Nrog lub hermetic foob nyob ib ncig ntawm cov npoo ntawm ob daim iav, lub siab thiab ruaj khov thermally insulating lub tshuab nqus tsev kom paub tseeb tias cov rwb thaiv tsev efficiency.

Lub tshuab nqus tsev iav yog nrog qis U-tus nqi. Raws li peb paub qhov qis U-tus nqi zoo dua cov nyhuv rwb thaiv tsev. U-tus nqi rau lub tshuab nqus tsev iav yog 0.4-0.6W/㎡. k, nws txhais tau tias koj tuaj yeem ua kom lub zog ua haujlwm zoo ntawm koj lub tsev yam tsis muaj kev txi ntuj lossis kev pom. Lub tshuab nqus tsev iav tuaj yeem txo qhov kub poob mus txog 60%, txo qis kev sib kis ntawm lub zog ob sab hauv thiab sab nraum lub tsev.

Lub tshuab nqus tsev iav yog super ruaj nrog yuav tsum tau saib xyuas tsawg. Lub tshuab nqus tsev txheej crates lub thermal so uas tiv thaiv tshav kub los ntawm kev khiav los yog nkag mus rau hauv lub tsev. Lub tshuab nqus tsev iav yuav tsis txo qhov muaj peev xwm rwb thaiv tsev nyob rau lub sijhawm, nws lub neej ntev yuav kav ntev dua 25 xyoo thiab tuav cov khoom insulating rau ntau xyoo.

Lub tshuab nqus tsev iav yog qhov ua tau zoo soundproofing nrog txo suab siab tshaj 39 decibels. Nws tuaj yeem thaiv cov suab nrov thiab tiv thaiv kev sib kis ntawm lub suab, pab txo cov suab nrov tsawg hauv cov suab nrov, tsis khoom thiab muaj tsheb ntau.

Vacuum iav yog anti-condensation thiab Frost-resistant. Tsis muaj condensation txawm tias qhov kub thiab txias yuav ncav cuag 70 degrees. Yog li tsis muaj teeb meem li cas qhov kub ntawm qhov sib txawv hauv tsev thiab sab nraum zoov, lub tshuab nqus tsev iav yuav muab kev pom zoo thiab pom tseeb hauv cov tsev nyob thiab kev lag luam.

Lub tshuab nqus tsev iav yog lub teeb hauv qhov hnyav, qhov tsawg kawg nkaus qhov hnyav yog 20kgs ib SQM. Lub iav thickness yog thinner, aluminium profile load yog tsawg. Yog tias cov iav tsoos xav kom ua tau raws li qhov kev ua tau zoo, lub thickness rau iav yuav tsum xaiv saum toj no 19 hli uas hnyav yog 47.5kgs ib SQM, ces tus nqi rau txhuas profiles thiab qhov rais yuav nce raws li.

Lub tshuab nqus tsev vacuum rau lub tsev passive tuaj yeem pab tsim kom muaj chaw nyob zoo, txo cov pa roj carbon emissions thiab pab txhawb kev txhim kho kom ruaj khov. Lub tsev passive nrog lub tshuab nqus tsev iav qhov rais tuaj yeem ua tiav qib siab ntawm kev siv hluav taws xob ntau dua li cov qhov rais ib txwm siv ob lossis triple glazing.

Yog tias koj tab tom nrhiav ib lub khob uas yuav muab lub zog zoo tshaj plaws, kev pom zoo thiab kev saib xyuas yooj yim, xaiv lub tshuab nqus tsev vacuum rau lub tsev passive!

Khoom Specification

5mmT+0.15V+5mmTL
Ug=0.55W/㎡.k

6mmT+0.15V+6mmTL
Ug=0.5W/㎡.k

5mm+16A TGI+5mmT+0.15V+5mmTL
Ug=0.45W/㎡.k

Qhov Loj: 3300x2000mm

Khoom Khoom

1. Kev rwb thaiv tsev thermal

U-tus nqi 0.4-0.6W/㎡.k

Txog li 60% kev txuag hluav taws xob

71 1

2. Suab rwb thaiv tsev

Rw Ntau dua lossis sib npaug rau 39dB

3. Nyias ntau dua sib dua

Ib lub tshuab nqus tsev iav tsuas yog 10.15mm Thk. Qhov hnyav: 25kg / m²; Nws txo cov kev siv cov ntaub ntawv thaum ncua kev pab cuam lub neej ntawm kho vajtse. Tus nqi ntawm kev khaws cia thiab kev thauj mus los kuj tseem txo qis.

4. Super Lub neej ntev

Qhov kev pab cuam lub neej expectancy ntawm Vacuum iav tshaj 25 xyoo.

5. Tempered thiab nyab xeeb

Vaccum iav yog Full-Tempered, Siab zog, cuam tshuam tsis kam
